EN12209 Edelstahl 304 Brandschutz-WC-Badezimmer-Einstecktürschloss
Heim » Produkte » EN12209 Edelstahl 304 Brandschutz-WC-Badezimmer-Einstecktürschloss

Kategorie

loading

Anteil an:

EN12209 Edelstahl 304 Brandschutz-WC-Badezimmer-Einstecktürschloss

  • 78mm
  • 60mm
  • CE / UKCA (3 X 9 1 0 G - B 0 2 0)
  • 240 Minuten (Stahltür); 90 Minuten (Holztür)
Verfügbarkeitsstatus:
Menge:

Product Description

Model

6078ZWC

Latch

SS304

Deadbolt

SS304,1 throw

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

CE UKCA EN12209/DIN18251/EN1634-1

Fire resistance

240mins (Steel door); 90mins (Timber door)

Bathroom mortise door lock 6078ZWC details

CE Certificate Euro Bathroom Mortise Lock


Bathroom mortise lock latch bolt and deadbolt. The latch bolt is operated by lever handle and projection is 12mm. The deadbolt is operated by indicator, which is one throw, and projection is 20.5mm. The size of latch follower is 8*8mm, the size of thumb turn follower is 5*5mm/8*8mm.


Mortise door lock


The material of Mortise door lock is stainless steel, which has a very high melting point that can match fire resistance performance. Our door locks pass the fire rated test comply with EN1634, which is 90mins on timber door, 240mins on steel door.


Features


  • Grade 3, according to European standard EN12209/DIN18251

  • Reversible latch suitable for DIN left and DIN right doors

  • 6078-78mm center distance ,60mm backset

  • Fire rated 240mins on steel door ; 90mins on timber door

  • Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)

  • Corrosion resistance 240 hours

  • One Throw deadbolt

  • Stainless steel 304 material

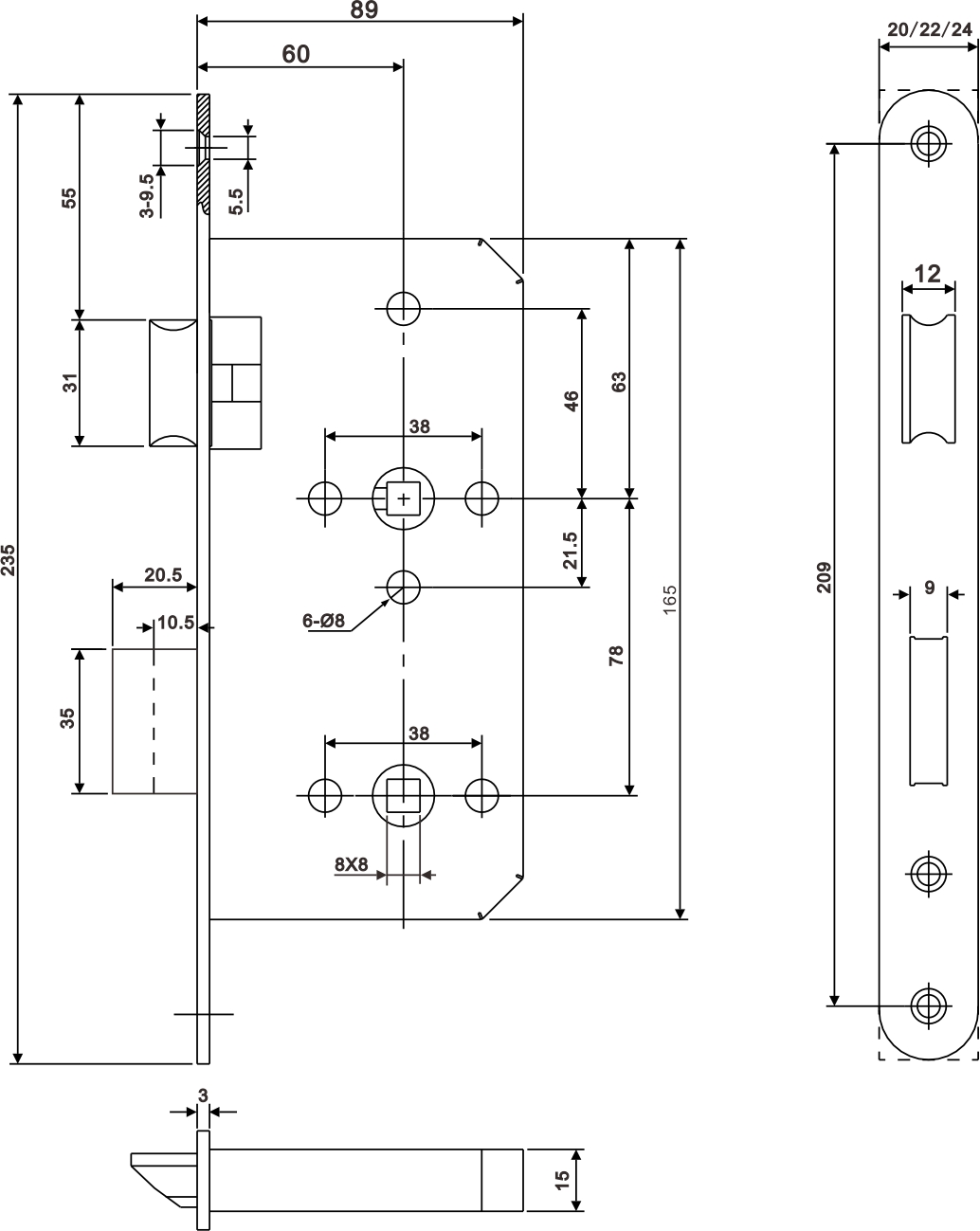

Bathroom Mortise lock size


EN12209 Classification


Classification of Bathroom mortise lock


Related Items


SS304 Bathroom mortise lock always used with lever handle and indicator.

Widely used in the public building such as airports, shopping mall, hospital, etc.


Bathroom mortise lock set
