Product Description

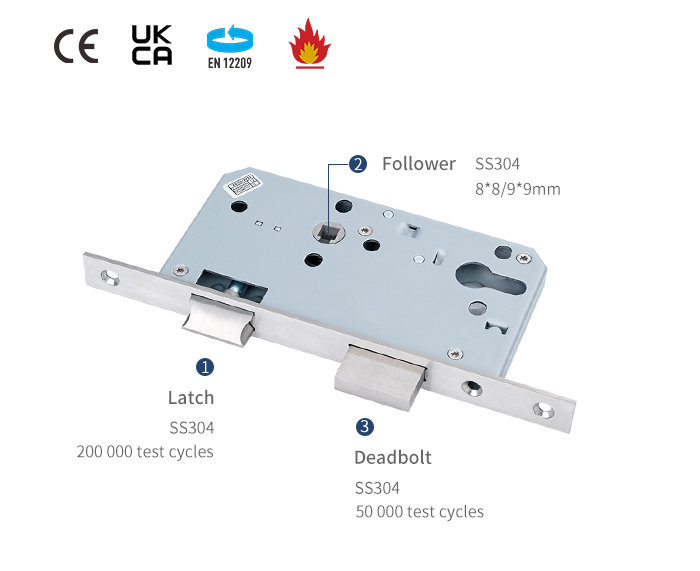

Model | 6072Z |
Latch | SS304 |
Deadbolt | SS304; 2 throws, Projection: 20mm |
Follower | SS304; size: 8*8mm |
Forend | SS304; Thickness: 1.5mm |
Compliance with | CE UKCA EN12209/DIN18251/EN1634-1 |
Fire resistance | 240mins (Steel door); 90mins (Timber door) |
Stainless Steel Fire Rated Mortise Door Lock
SS304 European mortise lock , also called sash lock or mortise entrance lock is the most popular and widely used door lock in modern buildings. This mechanical mortise lock is easy to install, operate and has a long service life. We are professional fire rated mortise lock manufacturer and supplier with more than 10 years experience. This CE marking mortise lock is in accordance with EN12209 standard , also passed fire resistance test according to EN1634-1: 240mins on steel fire door ; 90mins on timber fire door. Dimension is in compliance with DIN18251. Material is high grade stainless steel 304, which is durable and making it an ideal,environmentally friendly material comparing with others. Our mortise lock is suitable for the application of smoke control and fire proof doors in public buildings.
Features
Grade 3, according to European standard EN12209/DIN18251
Reversible latch suitable for DIN left and DIN right doors

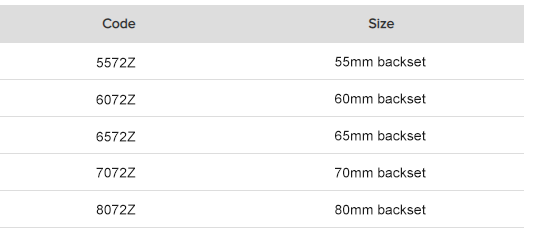

72mm center distance ,60mm backset
Fire rated 240mins on steel door ; 90mins on timber door
Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)
Corrosion resistance 240 hours
Double Throw (2 Turns) deadbolt
Stainless steel 304 material
Opening from the outside: Keys and handles
EN12209 Classification
Related Items

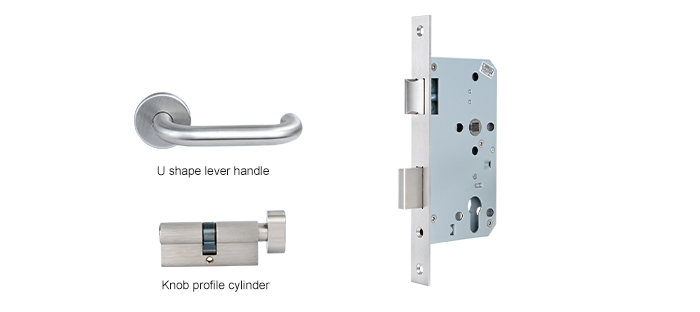

Mortise entrance lock commonly matches with U shape lever handle and thumb turn profile brass cylinder. Feel free to contact us if you want one-stop service for fire door hardware.
