Einsteckschloss 6072Z

  • 72mm
  • 60mm

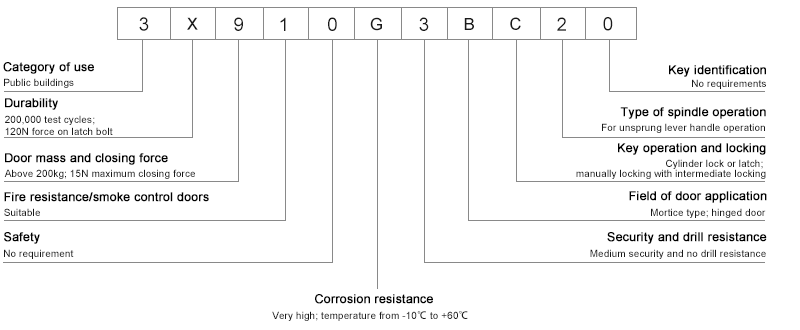

  • CE / UKCA (3 X 9 1 0 G 3 BC 2 0)
  • 240 Minuten (Stahltür);90 Minuten (Holztür)
Verfügbarkeitsstatus:
Menge:

Product Description


Model

6072Z

Latch

SS304

Deadbolt

SS304; 2 throws

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

CE UKCA EN12209/DIN18251/EN1634-1

Fire resistance

240mins (Steel door); 90mins (Timber door)

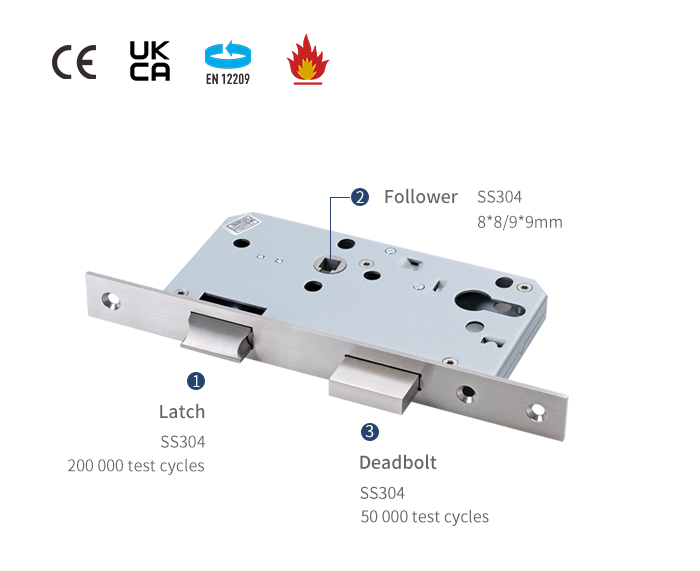

Mortise door lock 6072Z details

CE Mortise Lock

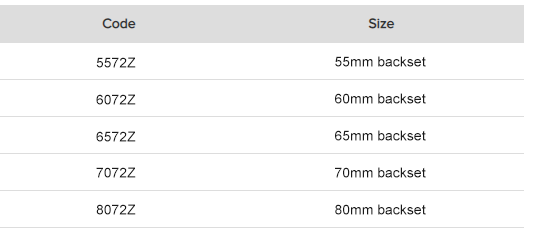

We are a professional European standard fire resistance door hardware manufacturer with more than 13 years experience. We provide our customers with quality fire proof mortise door lock . Our mortise lock passed CE /UKCA certification according to EN12209 standard , also passed fire resistance test . The material of our CE marking euro mortise lock is high quality stainless steel , it has round end or square end. The backset we can provide is 55mm/60mm/ 65mm/70mm/80mm. This mortise entrance lock , also called sash lock, is the most widely used door lock in public buildings, and it is suitable for used on smoke control and fire proof doors.


Features


  • Grade 3, according to European standard EN12209/DIN18251

  •  Reversible latch suitable for DIN left and DIN right doors

  •  6072Z-72mm center distance ,60mm backset

  •  Fire rated 240mins on steel door ; 90mins on timber door

  •  Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)

  •  Corrosion resistance 240 hours

  •  Double Throw (2 Turns) deadbolt

  •  Stainless steel 304 material
