SS304; size: 8*8mm
SS304; Thickness: 3mm
CE UKCA EN12209/DIN18251/EN1634-1
240mins (Steel door); 90mins (Timber door)
CE Fire Resistance SS304 Mortise Door Lock
CE fire resistance SS304 mortise door lock is a very popular lock in commercial buildings, which is inside the door. The full mortise lock has three main parts: lock case, lever handle and profile cylinder. You can not see the lock case when it is installed on the door and the profile cylinder is also inside. So from outside you can only see the forend, latch, deadbolt, lever handle and the escutcheon. So this lock is call mortise lock ,or mortice lock.
The public place determines that door hardware must be fireproof, we produce European standard mortise lock with more than 10 years experience as a professional fire door lock manufacturer. Our CE marked mortise door passed fire resistance test confirming to EN1634-1 standard. That means the mortise lock is suitable for smoke control and fire resisting doors in public buildings where there is little incentive to exercise care and where there is a high chance of misuse. And stainless steel door lock is also the ideal choice for public buildings because of the high melting point and not east to rust, these two aspects meet the requirements of fire performance and easy maintenance. Mortise lock backsets we can do inculdes 50mm, 55mm, 60mm, 65mm, 70mm, 80mm. This 70mm backset mortise lock is suitable for heavy duty doors. Our mortise lock are supplied with fixing screws , dustproof plastic box and strike plate. We are ready to supply the best quality mortise lock for you .
Grade 3, according to European standard EN12209/DIN18251
Reversible latch suitable for DIN left and DIN right doors

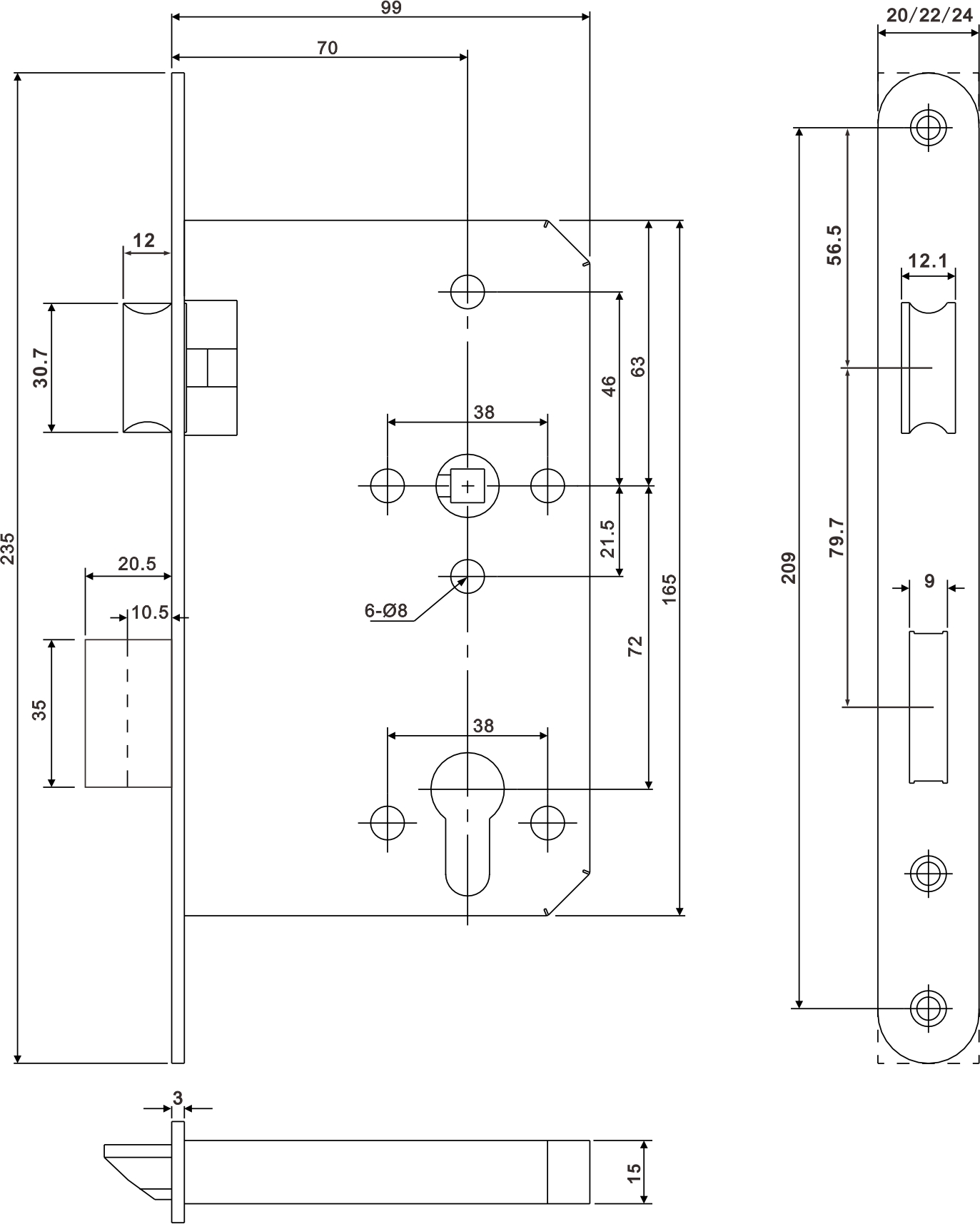

72mm center distance ,70mm backset
Fire rated 240mins on steel door ; 90mins on timber door
Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)
Very high Corrosion resistance 240 hours
Double Throw (2 Turns) deadbolt
Stainless steel 304 of latch, deadbolt, forend, follower, strike plate, screws
One-stop Shopping for Door Hardware
We can provide fire door locks , handles , profile cylinder and hinge at the same time. Our products conform to European standards. Suitable for wooden fire door and steel fire doors.
