72mm
60mm
EN12209/DIN18251
| Menge: | |
|---|---|
Product Description
Product Description
Model | 6072Z-SAE20 |
Latch | SS304+POM |
Deadbolt | SS304 |
Follower | SS304; size: 8*8mm |
Forend | SS304; Thickness: 3mm |
Compliance with | EN12209/DIN18251 |
Mute Function Mortise Lock
It is quite important to have the quietest possible opening and closing for doors. Therefore, silent latch mortise locks of the door are used. Latch of this mortise lock is made of stainless steel 304 and POM plastic. Performance and dimensions comply with European standards. It offers good performance when there is a high frequency of use. Our mute function mortise door lock suits for the applications of wooden fire door and steel fire door.
Features
Grade 3, according to European standard EN12209/DIN18251
Reversible latch suitable for DIN left and DIN right doors

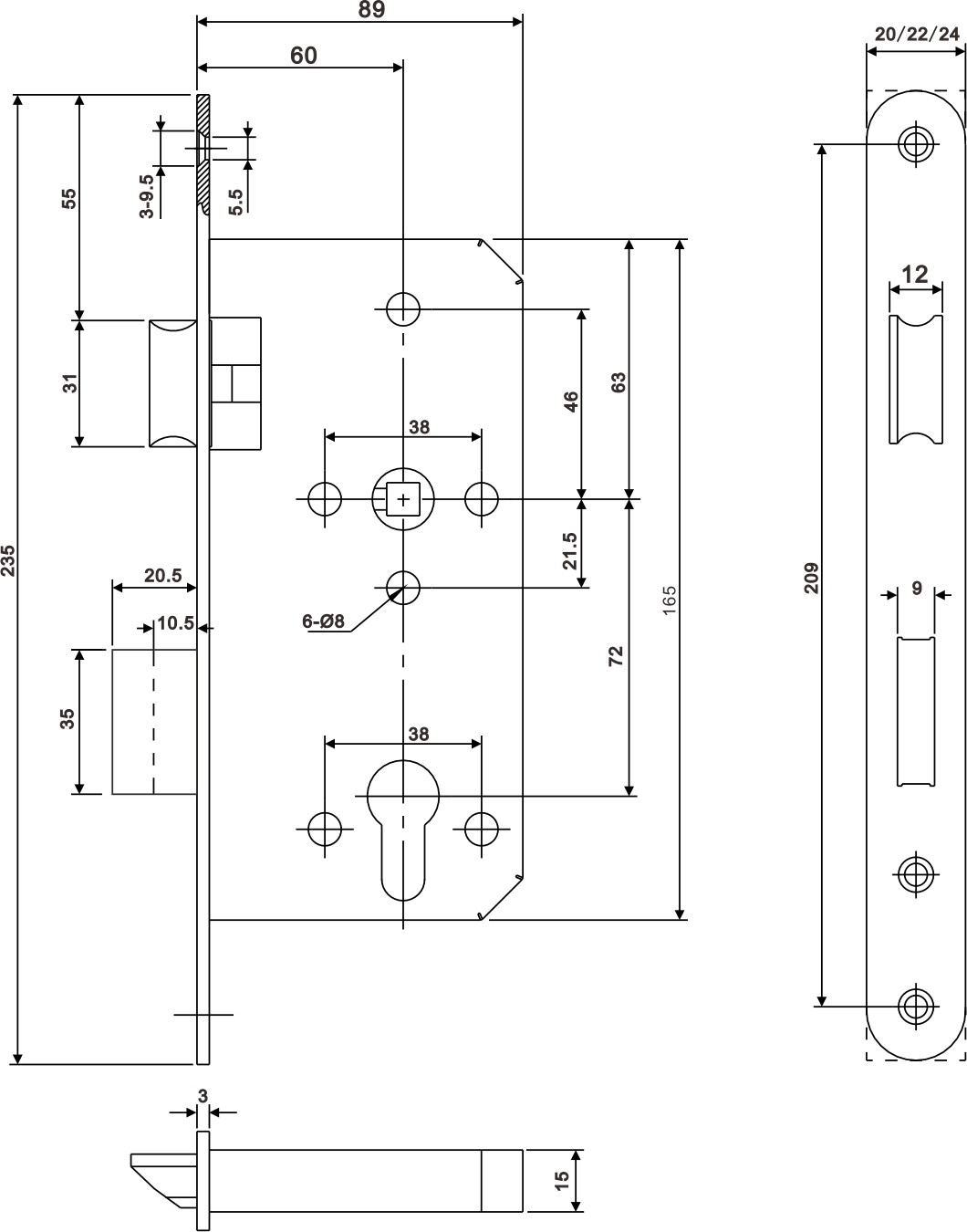

72mm center distance ,60mm backset
Stainless steel 304 material
Related Items
Our fire mortise lock is matched with our fire door handle and lock cylinder.
Download
