SS304 Fire Resistance Reversible Inside Latch Nut Door Lock
Heim » Produkte » SS304 Fire Resistance Reversible Inside Latch Nut Door Lock

Kategorie

loading

Anteil an:

SS304 Fire Resistance Reversible Inside Latch Nut Door Lock

  • 72mm

  • 60mm

  • EN12209/DIN18251

Verfügbarkeitsstatus:
Menge:

Product Description


Model

6072Z-AE20

Latch

SS304

Deadbolt

SS304; 1 throw

Follower

SS304; size: 8*8mm

Forend

SS304; Thickness: 3mm

Compliance with

EN12209/DIN18251

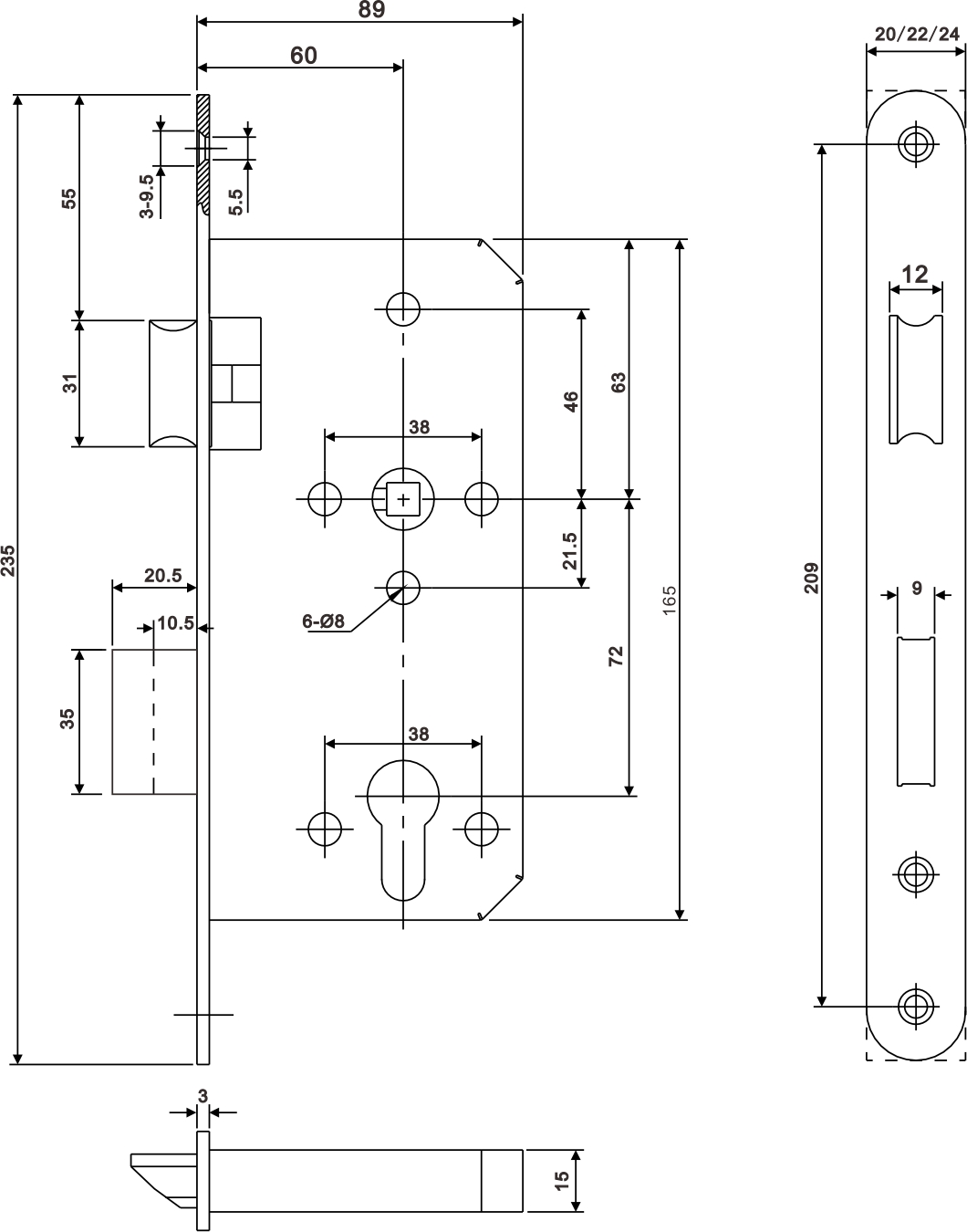

6072Z-AE20 details

How to reverse latch on mortice lock


The curved side of the mortice lock latch should meet the strike plate on the door frame when the doors are closing. So the latch bolt should be reversible to suit doors be hinged on the left and right. And for this mortice door lock which the latch can be reversible inside, reverse latch is quite simple:

Step1: Invert the mortice sash lock

Step2: Push the latch into lock case, reverse the latch


How to reverse inside latch mortise lock


Related Items


Jianhua can provide you one-stop service of fire rated door hardware, include mortice lock, door lever handle, profile brass cylinder and door hinge.


Mortise door lock set
