Product Description

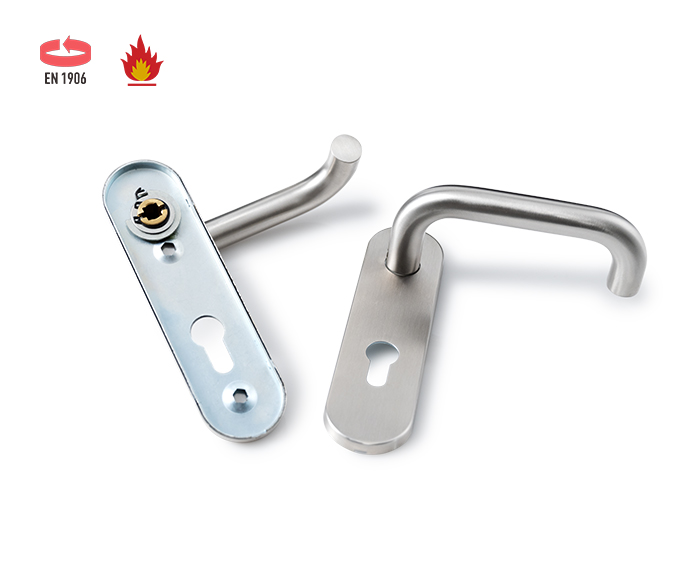

Model | SS2003-19B |
Material | SS304/316 |
Core | Brass; size: 8*8mm/9*9mm |
Spindle | 8*8mm/9*9mm; Zinc plated |
Compliance with | EN1906 |
Fire resistance | 120mins (Steel door); 60mins (Timber door) |
How to choose fire rated backplate door handle
Firstly, When choosing a fire rated backplate door handle, it's important to consider the EN1906 standard. This standard specifies the requirements for door handles. A handle that meets this standard is guaranteed to be of high quality and long-lasting.
Secondly, the material is also important when you choose a door lever handle. The high melting point of the stainless steel provide high fire resistance for the lever handle, which is better than zinc alloy and aluminium.
Features
Grade 3, According to EN1906
Core size 8*8 mm
Fire rated, 60mins on timber door, 120mins on steel door
Durability 200,000 test cycles
Corrosion resistance 240h
Concealed-fix press-on plate
M5 screws
Brass core
Material Stainless Steel 304

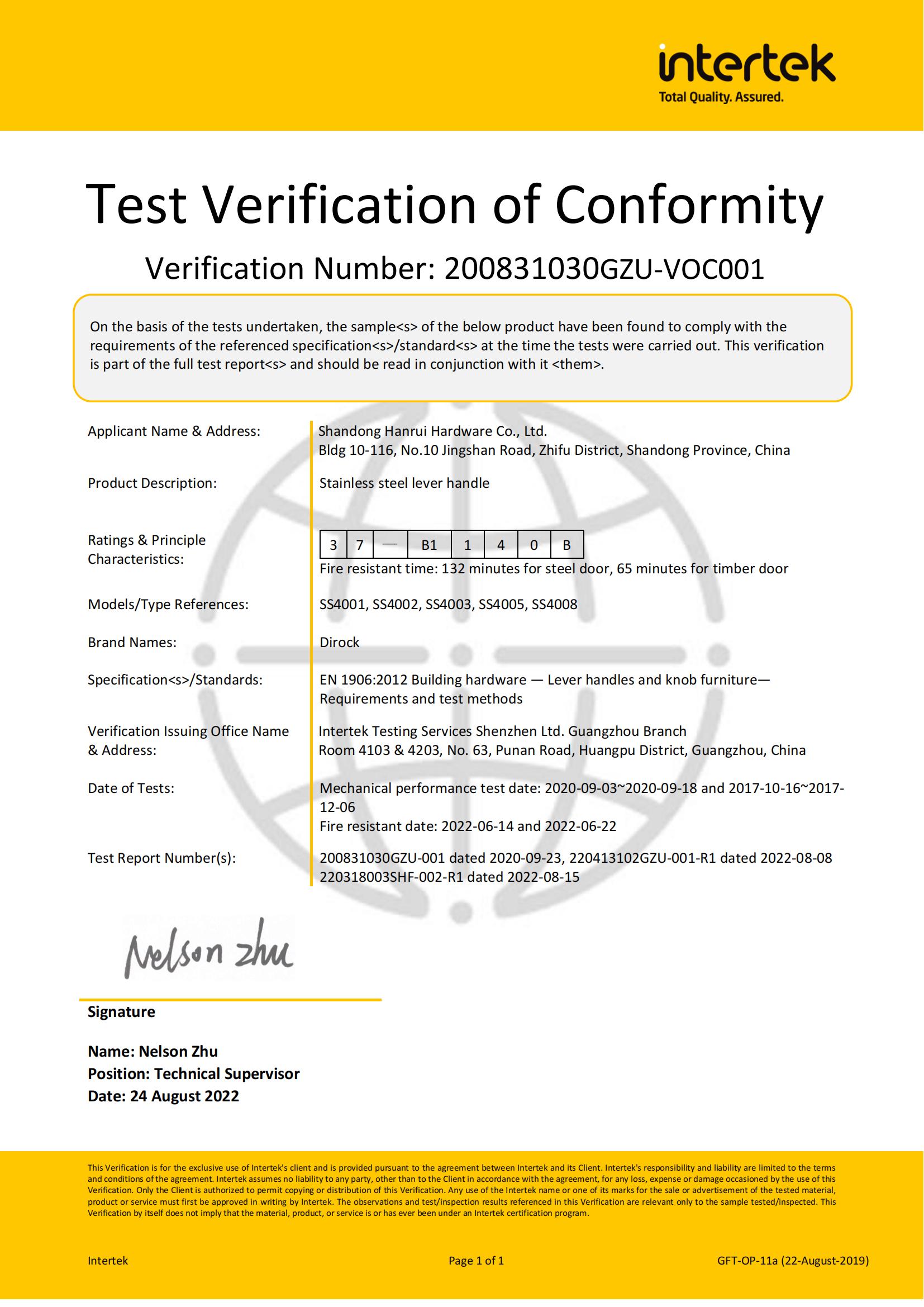

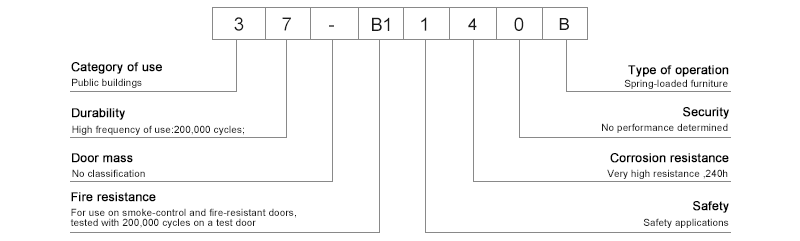

EN1906 Classification
Related Items

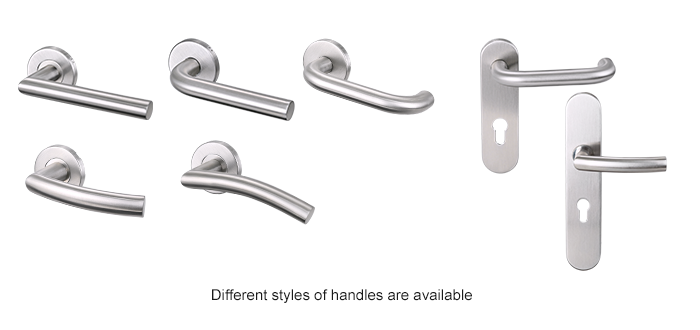

There are two type of lever handles: Rose Lever Handle and Backplate Lever Handle.
Both of them can match the Euro profile mortise door lock.
Download
